Item Metrics Async API
| ItemMetrics Async | This API submits the report generation request which executes asynchronously. The result of this API contains the identifier for the report, status, and location for retrieving the report data. |
|---|---|
| This report gets the count of items captured in Arctera Surveillance within a specified date range. | |
| The report identifier and locations in the result can be used to track the report generation operation. | |
To use the Item Metrics Async API, follow the steps below:
-
Call the Item Metrics Async API to submit a report generation request.
This asynchronous API supports GET and POST query methods. Use any of the following as needed:
-
GET https://<Reporting endpoint base URL>/OData/ ItemMetricsAsync?ReportName=<Name of the report>&CaptureDateStart=<YYYY-MM-DD>& CaptureDateEnd=<YYYY-MM-DD> -
POST https://<Reporting endpoint base URL>/OData/ ItemMetricsAsync
Sample Request
-
GET https://<Reporting endpoint Base URL>/odata/ ItemMetricsAsync?CaptureDateStart=2025-12-01&
CaptureDateEnd=2025-12-31&ReportName=TestItemMetrics
-
POST https://<Reporting endpoint base URL>/OData/ItemMetricsAsync
Item Metrics Async API - URL Parameter/Filters
The following parameters/filters can be used with the Item Metrics Async API when invoked using the GET and POST methods. The system uses the AND operator between the filters to return the result based on the specified filters.
| ReportName | Mandatory | Specify the name of the report you want to generate. |
|---|---|---|
| Data Type : String | ||
| Limitations | ||
| - The report name can be up to a maximum of 256 characters long. | ||
| - Special characters are not allowed; only alphanumeric values are permitted. | ||
| CaptureDateStart | Mandatory | CaptureDate refers to the date on which items are captured or ingested in Arctera Surveillance is recorded as the CaptureDate for that item. |
| This filter specifies the start date for returning count of items whose CaptureDate is greater than or equal to this start date. | ||
| Data Type : Date in the YYYY-MM-DD format. | ||
| Limitations | ||
| For the cloud-based application, a maximum of one year duration is allowed. | ||
| CaptureDateEnd | Mandatory | CaptureDateEnd refers to the end date for returning count of items whose CaptureDate is greater than or equal to this date. |
| Data Type : Date in the YYYY-MM-DD format. | ||
| Limitations | ||
| For the cloud-based application, a maximum of one year duration is allowed. | ||
| Departments | Optional | Specifies the departments to which the item belongs and returns item counts for items within that department. |
| Data Type : JSON array of integers id (identifier fields) that is Department IDs. | ||
| Limitation | ||
| As an input, this API can pass maximum of 1000 Departments IDs. | ||
| - To include results for all departments of a specified customer in a report, do not specify any department IDs in a query. | ||
| - To include results for specific departments of a specified customer in a report, specify department IDs in the query. | ||
| Note: To get the Department IDs, SeeDepartments API. Refer to thedepartmentIdfield only. | ||
| MessageTypes | Optional | Specifies the type of captured items and returns item counts for items that have the specified message type. |
| Data Type : JSON array of integers 'id' (identifier fields) that is MessageTypes IDs. | ||
| Limitation | ||
| As an input, the Item Metrics API can pass maximum 100 MessageTypes IDs on a single page. | ||
| ReturnBy MonitoredEmployee | Optional | Specifies whether report results are grouped by monitored employees. This parameter value is set to false by |
| default. | ||
| - When set to false or not specified, it returns the item metrics count grouped by departments. Note: When report results are grouped by departments, results are returned only up to the previous day. Results for the current date are not included. | ||
| - When set to true , it returns the item metrics count grouped by monitored employees. The monitoredEmployeeId and monitoredEmployee parameters are applicable, and return the corresponding values in the response. | ||
| Data Type : Boolean | ||
| Possible values : true, false |
Note: If no optional parameters are specified (such as in the GET request), the Item Metrics API returns counts for all Departments and MessageTypes.
Scenario 1: A new request to submit the report

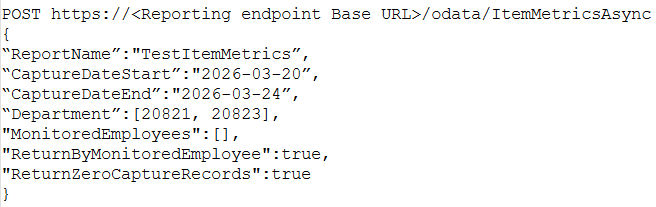

Sample request:
 |
|---|

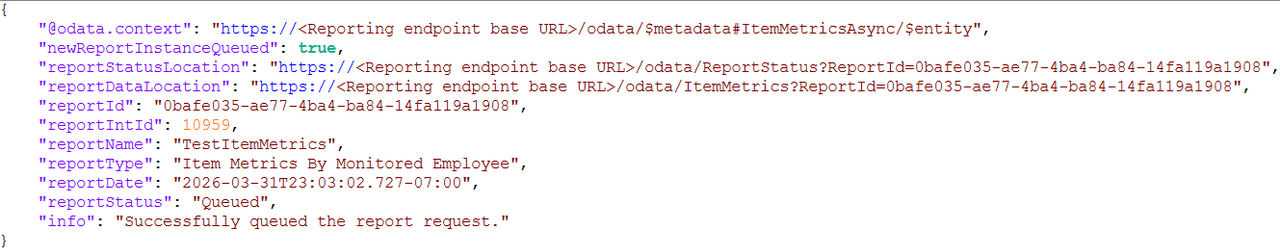

Sample response:
 |
|---|
Note: The API response for Item Details, Item Metrics, and Evidence of Review reports also include the input parameters specified during report generation as shown in the image below.
 |
|---|
Refer to the table below for details on the attributes included in the ItemMetricsAsync API response.
| Name | Description |
|---|---|
| reportId | Displays report ID. It is generated upon successful execution of API. |
| reportName | Displays report name. It is generated upon successful execution of API. |
| reportType | Displays the report type as Item Metrics . |
| reportDate | Displays the date of report generation after successful execution of API. |
| reportStatus | Displays report status. For more information on statuses, See Report Status API . |
| info | Displays a message if the report request has queued successfully or not. |
| newReportInstanceQueued | Specifies whether a new report generation request has been submitted or not. The Rate Limiting feature restricts submission of multiple requests with identical input parameters if attempted within one minute. |
| It returns the following values: | |
| True : The value is shown as True , if the new report request has been queued successfully. | |
| False : The value is shown as False , if the input parameters of the current request are identical to the parameters of the already submitted request within one minute , a new report will not be queued. As a result, the details of the existing report request are returned. | |
| reportStatusLocation | Displays a URL with report ID. |
| To view the status of this report, use the same URL. | |
| reportDataLocation | Displays a URL for the location of report data. |
| To access the report data, use the same URL. |

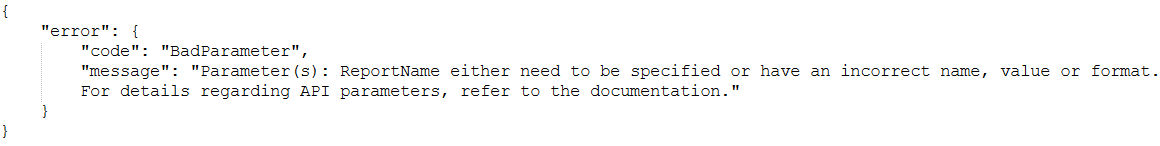

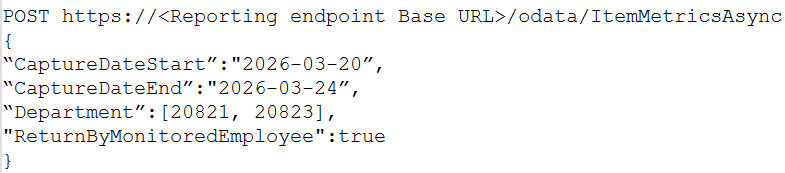

Scenario 2: A new request to submit the report when ReportName parameter is ignored
Sample request:
 |
|---|
Sample response:
 |
|---|

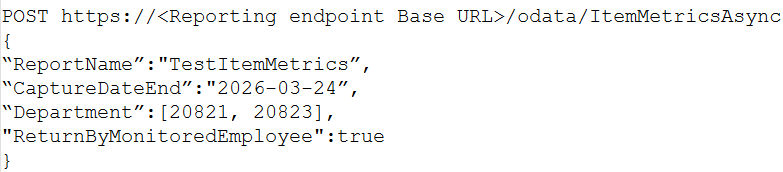

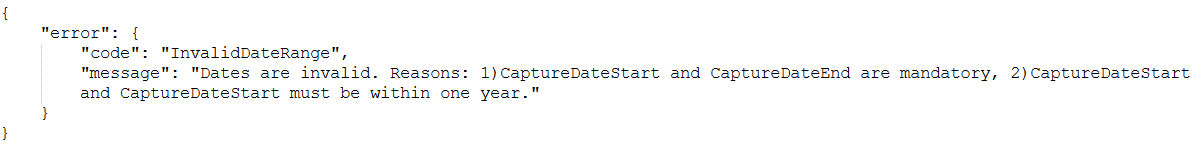

Scenario 3: A new request to submit the report when one of the dates parameter is ignored
Sample request:
 |
|---|
Sample response:
 |
|---|
-
Call the ReportStatus API to get the status of the Item Metrics Async API report. See Report Status API.
-
Once the report is ready, call the Item Metrics API to retrieve the report data from the asynchronous API.
