User Roles Async API
| UserRolesAsync | This API submits the report generation request which executes asynchronously. The result of this API contains the identifier for the report, status, and location for retrieving the report data. |
|---|---|
| The report identifier and locations in the result can be used to track the report generation operation. | |
To use the UserRolesAsync API, follow the steps below:
-
Call the UserRolesAsync API to submit a report generation request.
This asynchronous API supports GET and POST query methods. Use any of the following as needed:
-
GET https://<Reporting endpoint base URL>/OData/UserRolesAsync?ReportName=<Name of the report>&Users=[list of comma-separated values]&Departments=[list of comma-separated values]&Scopes=[list of comma-separated values] -
POST https://<Reporting endpoint base URL>/OData/UserRolesAsync
Sample Input
-
GET https://<Reporting endpoint Base URL>/odata/ UserRolesAsync?ReportName=<Name of the report>Users=[1247,3821] -
POST https://<Reporting endpoint base URL>/OData/UserRolesAsync
UserRolesAsync - URL Parameter/Filters
The following parameters/filters can be used with the UserRolesAsync API when invoked using the GET and POST methods. The system uses the AND operator between the filters to return the result based on the specified filters.
| ReportName | Mandatory | Specify the name of the report you want to generate. |
|---|---|---|
| Limitations | ||
| - The report name can be up to a maximum of 256 characters long. | ||
| - Special characters are not allowed; only alphanumeric values are permitted. | ||
| Departments | Optional | Specifies IDs of the departments to which users and their roles belongs to. |
| Limitations : | ||
| This API can pass a maximum of 100 Departments IDs as input. | ||
| Data Type : JSON array of integers 'id'(identifier fields) that is Departments. | ||
| Note: To get the Department IDs, SeeDepartments API. Refer to thedepartmentIdfield only. | ||
| Scopes | Optional | Specifies the scope of the users roles. Possible values are: 160 for application-level roles and 161 for department-level roles. |
| Data Type : JSON array of integers 'id'(identifier fields) that is Scopes. | ||
| Users | Optional | Specifies IDs of the users. |
| Limitations | ||
| This API can pass a maximum of 100 User IDs as input. | ||
| Data Type : JSON array of integers 'id'(identifier fields) that is Users. | ||
| Note: To get the User IDs, SeeUsers API. Refer to theuserIdfield only. |
Scenario 1: When Users are mentioned, but Departments and Scopes are not specified..
Sample input:
POST https://<Reporting endpoint base URL>/OData/UserRolesAsync
{
"ReportName":"TestUserRolesReport",
"Departments":[],
"Scopes":"[],
"Users":[3821]
}

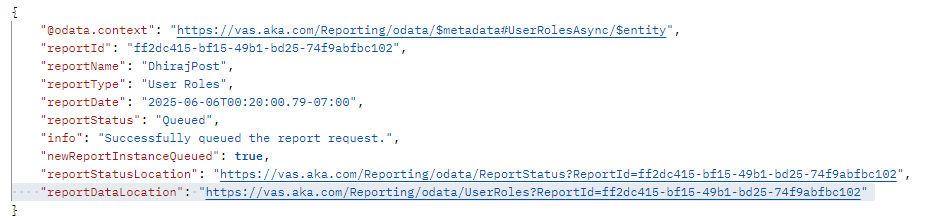

Sample response:
Scenario 2: When Departments are mentioned, but Users and Scopes are not specified.
Sample input:
POST https://\<Reporting endpoint base URL\>/OData/UserRolesAsync
{
"ReportName":"TestUserRolesReport",
"Departments":[23],
"Scopes":"[],
"Users":[]
}
Sample response:
Scenario 3: When Departments, Users, and Scopes are mentioned.
Sample input:
POST https://<Reporting endpoint base URL>/OData/UserRolesAsync
{
"ReportName":"TestUserRolesReport",
"Departments":[23],
"Scopes":"[160,161],
"Users":[55,67]
}
Sample response:
Scenario 4: When Departments, Users and Scopes are mentioned, but ReportName is not specified.
Sample input:
POST https://\<Reporting endpoint base URL\>/OData/UserRolesAsync
{
"ReportName":"",
"Departments":[23],
"Scopes":"[160],
"Users":[3821]
}

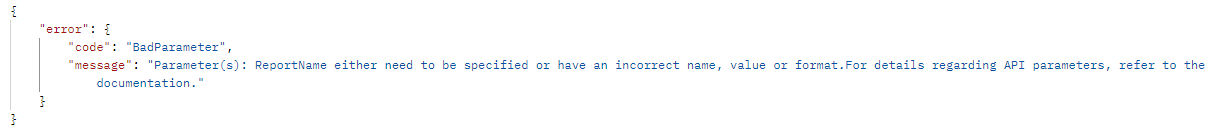

Sample response:
The following table explains the parameters showcased in the response to a User Roles Async API request.
| Name | Description |
|---|---|
| reportId | Displays report ID. It is generated upon successful execution of API. |
| reportName | Displays report name. It is generated upon successful execution of API. |
| reportType | Displays the report type as User Roles . |
| reportDate | Displays the date of report generation after successful execution of API. |
| reportStatus | Displays report status. For more information on statuses, See Report Status API .. |
| info | Displays a message if the report request has queued successfully or not. |
| newReportInstanceQueued | Specifies whether a new report generation request has been submitted or not. The Rate Limiting feature restricts submission of multiple requests with identical input parameters if attempted within one minute. |
| It returns the following values: | |
| True : The value is shown as True , if the new report request has been queued successfully. | |
| False : The value is shown as False , if the input parameters of the current request are identical to the parameters of the already submitted request within one minute , a new report will not be queued. As a result, the details of the existing report request are returned. | |
| reportStatusLocation | Displays a URL with report ID. |
| To view the status of this report, use the same URL. | |
| reportDataLocation | Displays a URL for the location of report data. |
| To access the report data, use the same URL. |
-
Call the ReportStatus API to get the status of the UserRolesAsync API report. See Report Status API.
-
Once the report is ready, call the UserRoles API to get the report data from the asynchronous API. See User Roles API.
